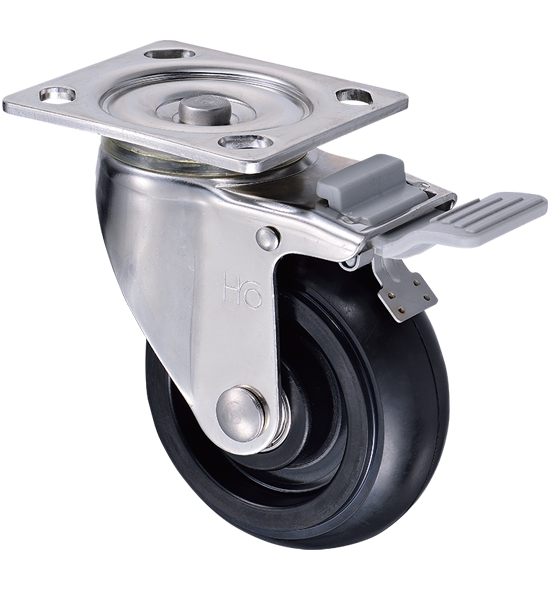

Heavy Machine Industrial Caster and Rubber Wheel 5 inch

A525BF-HG

Ho Caster Industrial Co., Ltd has very extensive experience in producing industrial casters. 5 Inch Rubber Front Brake Caster Wheels are made in Taiwan with excellent quality. Can't wait to hear from you. Contact us!

5 Inch Rubber Front Brake Caster Wheels are designed with nylon core and elastic rubber wheels.

Features

Wheel: Elastic Rubber Wheel, with the features of high elasticity, good load capacity and wear resistances.
Wheel Core: Nylon Core to increase the load capacity and the stability when moving.
Bearing: #6202 double ball bearings and sleeve bearings to improve the rolling and stability.
Fork: Front Total Lock with top plate. Pressed steel and integrally formed. Zinc plated.

Specifications

Item Number	A525BF-HG
Type	Front Total Lock Caster
Wheel Type	Elastic Rubber
Wheel Dia x Width	5x2 inch (125x50 mm)
Overall Height	167 mm
Load Capacity	300 kg
Bolt Hole Center	70x85 mm
Plate Size	105x115 mm
Bolt Hole	Φ12 x 20
Wheel Bearing	#6202 Double Ball Bearings
Fork Structure	Pressed Steel; Zinc Plated
Eccentricity	44 mm
Wheel Core	Nylon Core
Weight	2.036 kg
