Ho Caster Industrial Co., Ltd has very extensive experience in producing industrial casters. 5 Inch Rubber Rigid Caster Wheels are made in Taiwan with excellent quality. Can't wait to hear from you. Contact us!

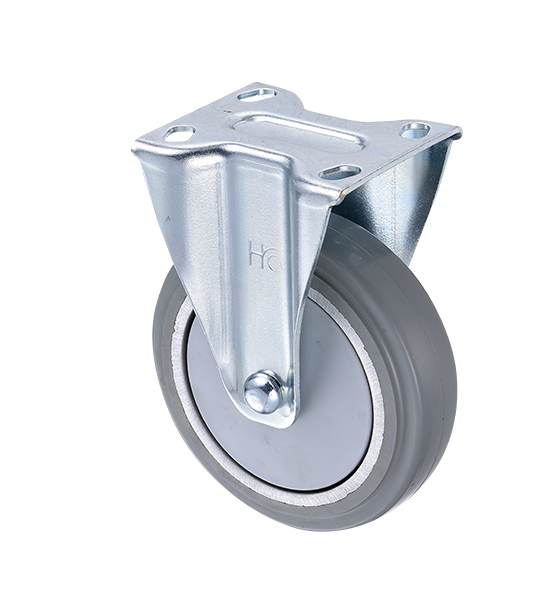

5 Inch Rubber Rigid Caster Wheels are designed with aluminum core and elastic rubber wheels.
Features
- Wheel: Elastic Rubber Wheel (gray), with the features of high elasticity, good load capacity and wear resistances.
- Wheel Core: Aluminum Core, not easy to be rusted and also increases the durability and load capacity of caster.
- Bearing: #6202 single ball bearing to improve the rolling.
- Fork: Rigid type. Pressed Steel and one-piece formed frame. Zinc Plated.
- Others: Plastic wheel covers to prevent the dust, water and other materials.
Specifications
Item Number
| EB125FX-GA
|
Type
| Rigid Caster
|
Wheel Type | Elastic Rubber
|
Wheel Dia x Width
| 5x1¼ inch (125x32 mm) |
Overall Height | 161 mm
|
Load Capacity
| 200 kg
|
Bolt Hole Center | 48x70 mm
|
Plate Size
| 81x92 mm |
Bolt Hole | Φ10x16
|
Wheel Bearing
| #6202 Single Ball Bearing
|
Fork Structure
| Pressed Steel; Zinc Plated
|
Eccentricity
| - |
Wheel Core | Aluminum Core
|
Weight
| 0.95 kg
|
Others | Plastic Wheel Cover
|
